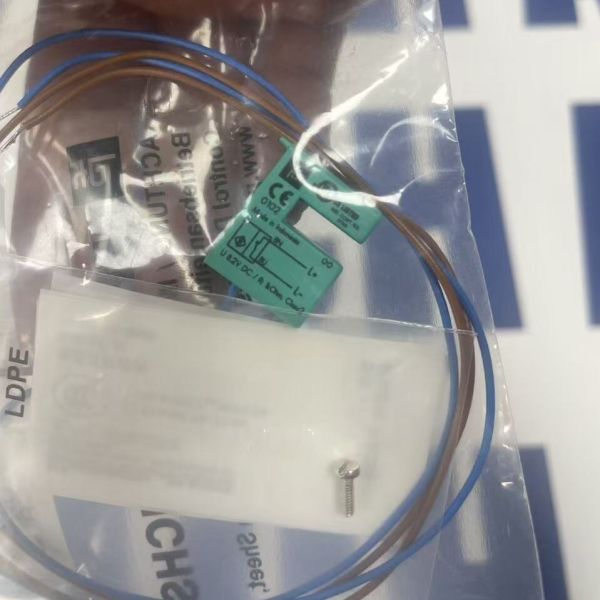

Pepperl+Fuchs SJ3,5-G-N | 3.5mm Slot Sensor, NAMUR, IP67
Pepperl+Fuchs SJ3,5-G-N inductive slot sensor. 3.5mm slot width, NAMUR output, normally closed (NC), 5-25V DC, 500mm PVC cable, IP67, -25°C to +100°C.
Product Overview
The Pepperl+Fuchs SJ3,5-G-N is a compact inductive slot sensor (fork sensor) designed for precise position detection of metallic objects. It features a 3.5 mm slot width and operates on the NAMUR principle, making it intrinsically safe and suitable for use in hazardous areas with a barrier. This sensor has a normally closed (NC) contact logic and comes with a 500 mm flexible PVC cable for direct connection to control systems.
Technical Specifications (Electrical & Functional)
| Parameter | Specification |
| Manufacturer Part No. | SJ3,5-G-N |
| Sensor Type | Inductive Slot (Fork) |
| Output Type | NAMUR (2-wire) |
| Switching Function | Normally Closed (NC) |
| Slot Width | 3.5 mm |
| Operating Voltage | 5 ... 25 V DC |
| Nominal Voltage | 8.2 V (Ri ≈ 1 kΩ) |
| Switching Frequency | 0 ... 3000 Hz |
| Current Consumption | ≤ 3 mA (No Target) |
| Hysteresis | 0 ... 0.6 mm |
Technical Specifications (Mechanical & Environmental)
| Parameter | Specification |
| Housing Material | PBT Plastic |
| Connection | 500 mm Flexible Cable (LiY, PVC) |
| Cable Cross-Section | 0.14 mm² |
| Degree of Protection | IP67 |
| Operating Temperature | -25 °C ... +100 °C |
| Dimensions (L x W x H) | 19.5 mm x 10 mm x 15 mm |
| Weight | Approx. 10 g |
| Standards | EN/IEC 60947-5-2, -5-6 |
Key Features
-
NAMUR Output: Designed for use with intrinsic safety barriers, providing reliable operation in potentially explosive atmospheres.
-
High-Speed Detection: With a switching frequency of up to 3000 Hz, it is ideal for counting small, fast-moving metal parts.
-
Compact Form Factor: The small slot width (3.5 mm) and lightweight design allow for installation in extremely tight spaces.
Applications
-
High-speed counting of screws, nuts, and small metal components
-
Position verification of actuator flags in automated machinery
-
Safety-related position monitoring in process automation[citation:available:2][citation:available:4]
